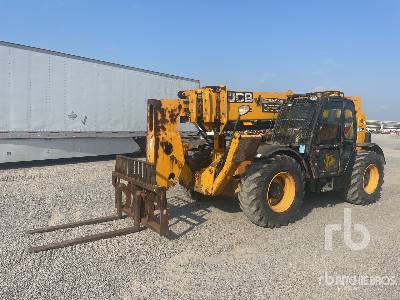

JCB 525-50 Telescopic Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
11.88ft in
E
Ground Clearance
1.19ft in
B
Width Over Tires
5.98ft in
C
Overall Height
7.19ft in
D
Wheelbase
6.57ft in
Turning Radius Outside Tires
12.18ft in
Lift
F
Max Lift Height
16.41ft in
G
Max Forward Reach
9.26ft in
Max Load At Max Reach
2204.63lb
Max Load At Max Height
5511.56lb
Max Lift Capacity
5511.56lb
Specifications
Engine
Number Of Cylinders
4
Gross Power
77hp
Max Torque
213.9lb ft
Torque Measured @
1200rpm
Displacement
256.3cu in
Aspiration
naturally aspirated
Operational
Fuel Capacity
23.8gal
Hydraulic System Fluid Capacity
18.5gal
Operating Voltage
12V
Tire Size
12.5x18 10PR
Transmission
Transmission Type
syncro shuttle transmission incorporating torque converter
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
18.7mph
Max Speed - Reverse
18.7mph
Hydraulic
Pump Flow Capacity
17.2gal/min
Relief Valve Pressure
3500psi
