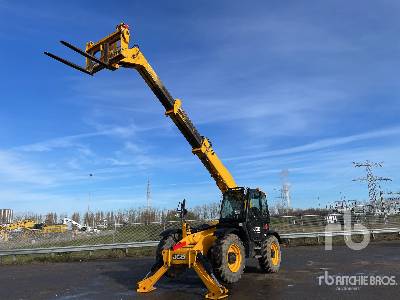

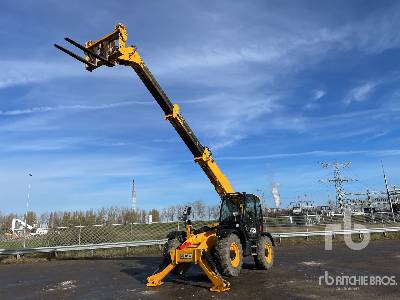

JCB 540-180 HI-VIZ Telescopic Forklift
Units
Dimensions
Dimensions
E
Ground Clearance
1.32ft in
B
Width Over Tires
7.71ft in
C
Overall Height
8.5ft in
D
Wheelbase
9.03ft in
Dump Angle
12.5degrees
Lift Capacity To Full Height
1102.32lb
Weight
25088.61lb
Lift
F
Max Lift Height
35.08ft in
G
Max Forward Reach
34.36ft in
Max Lift Capacity
8818.49lb
Specifications
Engine
Number Of Cylinders
4
Engine Model
JCB EcoMAX T4 Fina
Gross Power
73.8hp
Displacement
268.6cu in
Aspiration
turbocharged cooled
Transmission
Travel Speed
18.1mph
Transmission Type
Hydrostatic
Hydraulic System
Bucket Crowd
2.6sec
Extend
22.4sec
Retract
17.9sec
Max Operating Pressure
260 bar
Hydraulic Pump
103 L
Raise Time
13.8sec
Dump Time
2.9sec
Lower Time
10.2sec
