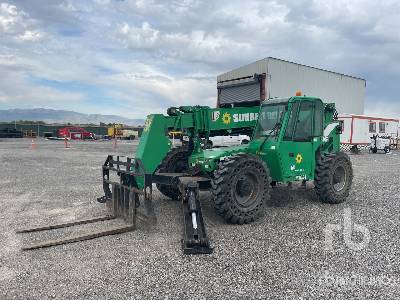

JLG 534D9-45 Telescopic Forklift
Units
Dimensions
Dimensions
A
Length To Fork Face
19.76ft in
E
Ground Clearance
1.59ft in
B
Width Over Tires
8.08ft in
C
Overall Height
7.81ft in
D
Wheelbase
11.23ft in
Turning Radius Outside Tires
14.41ft in
Lift
F
Max Lift Height
44.95ft in
G
Max Forward Reach
31.5ft in
Max Load At Max Reach
1499.15lb
Max Load At Max Height
6999.68lb
Max Lift Capacity
8999.27lb
Specifications
Engine
Number Of Cylinders
4
Engine Make
2347
Engine Model
QSB4.5
Gross Power
110hp
Power Measured @
2400rpm
Displacement
274.7cu in
Aspiration
turbocharge
Operational
Operating Weight
25249.6lb
Fuel Capacity
38.1gal
Operating Voltage
12V
Alternator Supplied Amperage
65amps
Drawbar Pull
20000.4lb
Tire Size
13.0x24-12PR
Transmission
Transmission Type
hydrostatic
Max Speed - Forward
18.1mph
Hydraulic
Pump Type
single-section gear
Pump Flow Capacity
40gal/min
