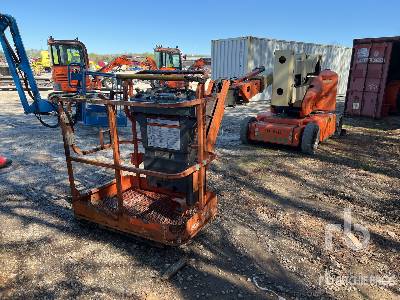

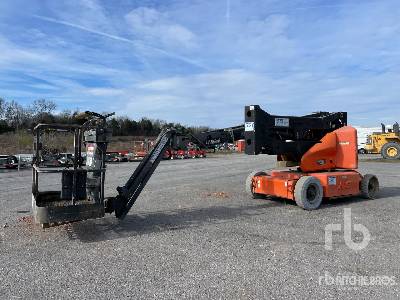

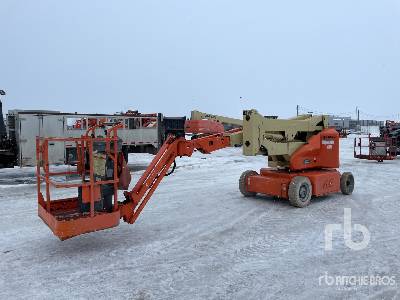

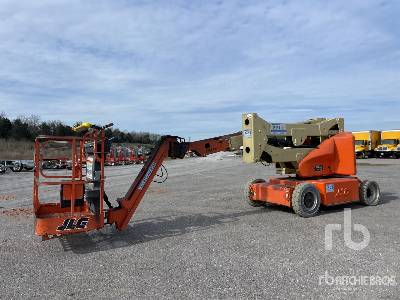

JLG E400AJP Boom Lift
Units
Dimensions
Dimensions
A
Overall Length
22ft in
B
Overall Width
5.9ft in
D
Wheelbase
6.7ft in
E
Ground Clearance
9in
Overall Height
6.7ft in
Tire Size
240/55-17.5 Pnuematic
Up And Over Height
21.6ft in
Platform Dimension A
2.6ft in
Platform Dimension B
5ft in
Tailswing Radius
_-
Platform
F
Max Platform Height
40ft in
G
Max Horizontal Reach
22.5ft in
Specifications
Electrical System
Batteries
8 x 6V, 370 amp-hr
Operational
Operating Weight
13700lb
Hydraulic System Fluid Capacity
4gal
Performance
Drive Speed
3.2mph
Swing
360degrees
Swing Type
Non-Continuous
Gradeability
30%
Platform Capacity
500lb
Turning Radius - Outside (Axles Retracted)
10.4ft in
Jib - Range Of Articulation
144degrees
