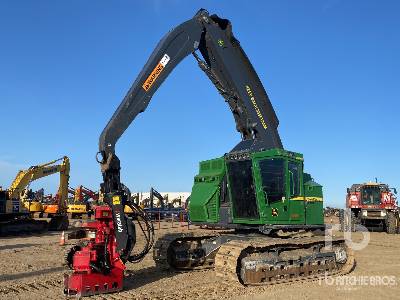

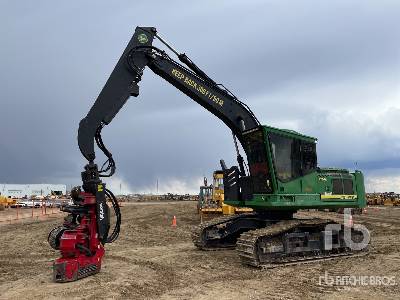

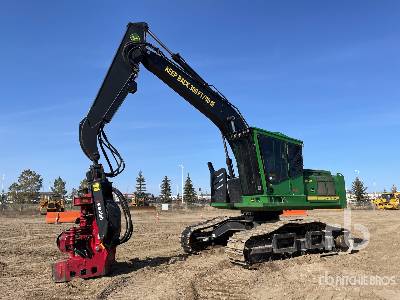

John Deere 2454D Butt & Top Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
47.15ft in
C
Shipping Height Of Unit
11.55ft in
I
Max Cutting Height
41.87ft in
K
Max Reach Along Ground
34.22ft in
M
Max Digging Depth
12.08ft in
Dimensions
E
Ground Clearance
2.5ft in
G
Height To Top Of Cab
11.55ft in
B
Width To Outside Of Tracks
2.3ft in
D
Length Of Track On Ground
47.15ft in
H
Tail Swing Radius
10.67ft in
Removal Counterweight Clearance
4.79ft in
Undercarriage
F
Track Gauge
8.6ft in
N
Shoe Size
27.56in
Number Of Carrier Rollers Per Side
2
Ground Pressure
8.85psi
Max Travel Speed
3.42mph
Drawbar Pull
56075lb
Number Of Shoes Per Side
45
Number Of Track Rollers Per Side
8
Specifications
Engine
Number Of Cylinders
6
Engine Make
John Deere
Engine Model
6068H
Net Power
194.5hp
Aspiration
Turbocharged
Displacement
415cu in
Operational
Operating Weight
77977.5lb
Fuel Capacity
277.4gal
Cooling System Fluid Capacity
8.2gal
Hydraulic System Fluid Capacity
81.9gal
Operating Voltage
24V
Engine Oil Capacity
6.5gal
Alternator Supplied Amperage
80amps
Hydraulic Pump Flow Capacity
65.5gal/min
Swing Mechanism
Swing Speed
10.6rpm
Swing Torque
79560.1lb ft
