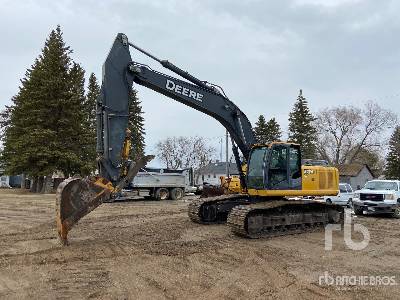

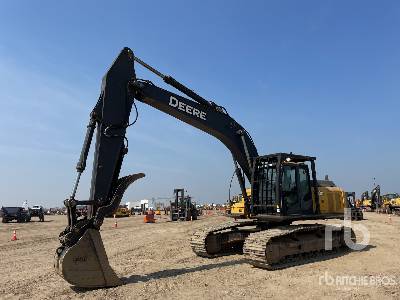

John Deere 270D LC Hydraulic Excavator
Units
Dimensions
Boom/Stick Option (Hex) 1
A
Shipping Length Of Unit
33.92ft in
C
Shipping Height Of Unit
10.42ft in
I
Max Cutting Height
32.83ft in
J
Max Loading Height
23.17ft in
K
Max Reach Along Ground
34.58ft in
L
Max Vertical Wall Digging Depth
20.08ft in
M
Max Digging Depth
23.83ft in
Boom/Stick Option (Hex) 1
Arm Length 10ft.2in. 3.11m
Boom/Stick Option (Hex) 2
A
Shipping Length Of Unit
35.25ft in
I
Max Cutting Height
34.33ft in
C
Shipping Height Of Unit
11ft in
J
Max Loading Height
24.58ft in
K
Max Reach Along Ground
36.5ft in
L
Max Vertical Wall Digging Depth
23.08ft in
M
Max Digging Depth
25.92ft in
Boom/Stick Option (Hex) 2
Arm Length 12ft. 4in. 3.75m
Dimensions
E
Ground Clearance
1.67ft in
G
Height To Top Of Cab
10.18ft in
B
Width To Outside Of Tracks
11.13ft in
D
Length Of Track On Ground
13.25ft in
H
Tail Swing Radius
9.58ft in
Removal Counterweight Clearance
3.83ft in
Undercarriage
F
Track Gauge
8.5ft in
N
Shoe Size
32in
Number Of Shoes Per Side
49
Drawbar Pull
56074lb
Number Of Track Rollers Per Side
8
Number Of Carrier Rollers Per Side
2
Max Travel Speed
3.4mph
Ground Pressure
5.84psi
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6068H
Net Power
188hp
Power Measured @
2100rpm
Max Torque
599lb ft
Displacement
414cu in
Aspiration
Turbocharged w/ charge cooler
Torque Measured @
1400rpm
Operational
Operating Weight
63425lb
Fuel Capacity
132gal
Cooling System Fluid Capacity
7.9gal
Hydraulic System Fluid Capacity
63.4gal
Operating Voltage
24V
Engine Oil Capacity
6.5gal
Swing Drive Fluid Capacity
2gal
Alternator Supplied Amperage
80amps
Hydraulic System Relief Valve Pressure
4980psi
Hydraulic Pump Flow Capacity
124.7gal/min
Swing Mechanism
Swing Speed
12.6rpm
Swing Torque
56852lb ft
Buckets
Reference Bucket Capacity
1.8yd3
Minimum Bucket Capacity
1yd3
Maximum Bucket Capacity
2.1yd3
