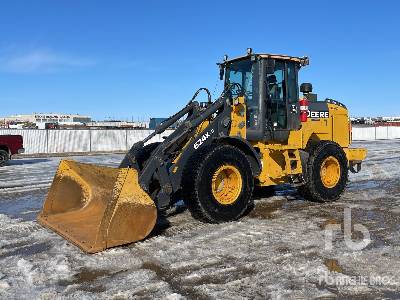

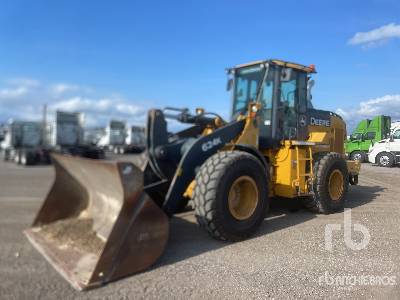

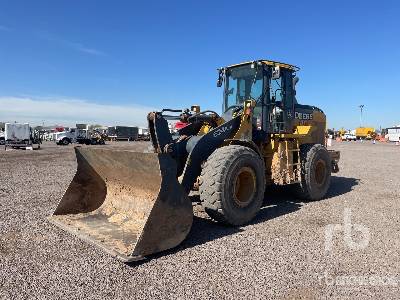

John Deere 624K High-Lift Wheel Loader
Units
Dimensions
Bucket
G
Dump Clearance At Max Raise
10.6ft in
Bucket Capacity - Heaped
3.54yd3
Bucket Capacity - Struck
3.01yd3
Bucket Width
8.83ft in
Breakout Force
25884lb
Dimensions
E
Ground Clearance
1.26ft in
A
Length With Bucket On Ground
26.81ft in
B
Width Over Tires
8.72ft in
C
Height To Top Of Cab
10.9ft in
D
Wheelbase
10.14ft in
F
Hinge Pin - Max Height
14.11ft in
H
Reach At Max Lift And Dump
3.65ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2240
Engine Model
6068H, Tier III certified
Net Power
198hp
Power Measured @
1800rpm
Max Torque
617lb ft
Displacement
414cu in
Torque Measured @
1600rpm
Aspiration
Turbocharged charge air cooled
Torque Rise
55%
Operational
Operating Weight
33772.7lb
Fuel Capacity
93gal
Hydraulic System Fluid Capacity
29.1gal
Engine Oil Fluid Capacity
5.1gal
Cooling System Fluid Capacity
7.2gal
Transmission Fluid Capacity
5.6gal
Front Axle/Diff Fluid Capacity
5.9gal
Rear Axle/Diff Fluid Capacity
4.5gal
Static Tipping Weight
25483.3lb
Turning Radius
17.3ft in
Operating Voltage
24V
Alternator Supplied Amperage
80amps
Rear Axle Oscillation
24degrees
Tire Size
20.5 R 25
Transmission
Transmission Type
Countershaft, powershift
Number Of Forward Gears
4
Number Of Reverse Gears
3
Max Speed - Forward
24.6mph
Max Speed - Reverse
16mph
Hydraulic System
Relief Valve Setting
3675psi
Pump Flow Capacity
59gal/min
Raise Time
5.9sec
Dump Time
1.3sec
Lower Time
2.7sec
Pump Type
variable displacement, axial piston
