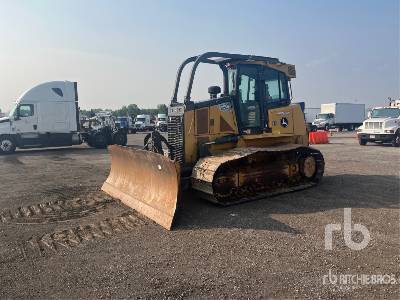

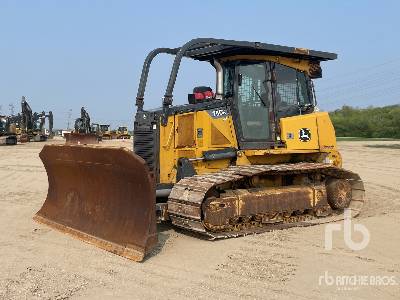

John Deere 750K Crawler Tractor
Units
Dimensions
Dimensions
C
Height To Top Of Cab
10.27ft in
D
Length Of Track On Ground
8.51ft in
E
Ground Clearance
1.17ft in
Undercarriage
G
Track Gauge
6.17ft in
H
Standard Shoe Size
7.52in
Number Of Shoes Per Side
40
Number Of Track Rollers Per Side
7
Ground Contact Area
4488in2
Specifications
Engine
Engine Make
John Deere
Engine Model
PowerTech PVS 6068
Net Power
165hp
Power Measured @
1800rpm
Displacement
414cu in
Operational
Operating Weight
34566.3lb
Fuel Capacity
97.3gal
Hydraulic Fluid Capacity
29.6gal
Transmission
Max Speed - Forward
6mph
Max Speed - Reverse
6mph
Hydraulic System
Pump Type
Variable Displacement Piston
Relief Valve Pressure
3625psi
Pump Flow Capacity
36.5gal/min
Standard Blade
Width
10.7ft in
Cutting Depth
22.7in
