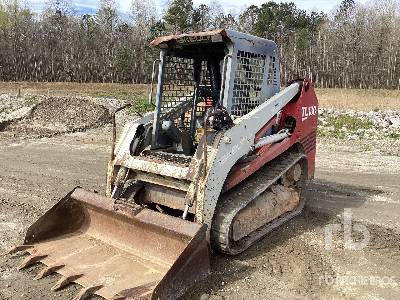

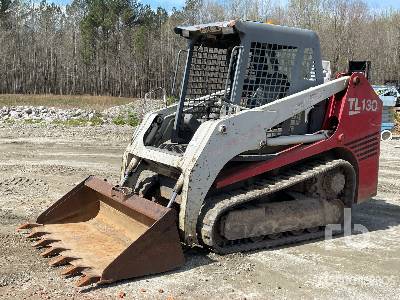

Takeuchi TL130 Multi Terrain Loader
Units
Dimensions
Dimensions
B
Width Over Tracks
5.19ft in
C
Height To Top Of Cab
7.34ft in
E
Ground Clearance
12.2in
G
Clearance At Max Lift And Dump
9.95ft in
H
Reach At Max Lift And Dump
2.4ft in
Turning Radius From Center - Inc Bucket
62.4in
Length With Bucket
11.26ft in
Turning Radius From Center - Machine Rear
82in
Undercarriage
D
Length Of Track On Ground
4.56ft in
Number Of Track Rollers Per Side
5
Width Of Track
1.5in
Ground Pressure
4.87psi
Specifications
Engine
Number Of Cylinders
4
Engine Make
2348
Engine Model
4TNV98
Gross Power
67hp
Power Measured @
2450rpm
Peak Torque
181lb ft
Torque Measured @
1600rpm
Displacement
202.5cu in
Operational
Operating Weight
7497lb
Cooling System Fluid Capacity
2.9gal
Fuel Capacity
19.8gal
Engine Oil Capacity
2.7gal
Hydraulic System Fluid Capacity
10.6gal
Operating Voltage
12V
Alternator Supplied Amperage
40amps
Max Speed - Low Range
4.4mph
Max Speed - High Range
6.3mph
Loader
Breakout Force
6728lb
Operating Load
1620lb
Tipping Angle
4630degrees
Hydraulic
Pump Flow
18gal/min
Relief Valve Pressure
2986psi
