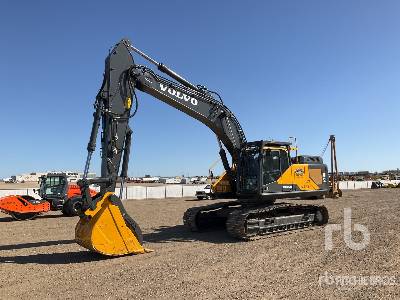

Volvo EC350E Hydraulic Excavator
Dimensions
Boom/Stick Option (Hex) 1
Max Cutting Height
32.99ft in
Max Vertical Wall Digging Depth
15.95ft in
Max Digging Depth
22.17ft in
Max Digging Reach On Ground
33.55ft in
Max Digging Reach
34.29ft in
Min - Front Slew Radius
13.42ft in
Max.Dumping Height
22.31ft in
Boom/Stick Option (Hex) 1
Boom - 6.2 m, 20.4 ft in / Arm - 2.6 m, 8.6 ft in
Boom/Stick Option (Hex) 2
Max Cutting Height
33.45ft in
Max Vertical Wall Digging Depth
16.41ft in
Max Digging Depth
22.94ft in
Max Digging Reach On Ground
34.39ft in
Max.Dumping Height
22.81ft in
Min - Front Slew Radius
14.08ft in
Boom/Stick Option (Hex) 2
Boom - 6.45 m,21.2 ft in / Arm - 2.6 m, 8.6 ft in
Max Digging Reach
35.09ft in
Boom/Stick Option (Hex) 3
Max Cutting Height
34.03ft in
Max Vertical Wall Digging Depth
18.08ft in
Max Digging Depth
24.91ft in
Max.Dumping Height
23.43ft in
Boom/Stick Option (Hex) 3
Boom - 6.45 m,21.2 ft in / Arm - 3.2 m, 10.6 ft in
Max Digging Reach
36.82ft in
Max Digging Reach On Ground
36.13ft in
Min - Front Slew Radius
14.03ft in
Boom/Stick Option (Hex) 4
Max Cutting Height
34.91ft in
Max Digging Depth
27.2ft in
Max.Dumping Height
24.33ft in
Max Digging Reach On Ground
38.28ft in
Max Digging Reach
38.9ft in
Min - Front Slew Radius
14.13ft in
Boom/Stick Option (Hex) 4
Boom - 6.45 m,21.2 ft in / Arm - 3.9 m, 12.10 ft in
Max Vertical Wall Dig Depth
20.05ft in
Dimensions
Tail Swing Radius
11.82ft in
Counterweight Clearance
3.81ft in
Track Length
195.16in
Overall Width
133.47in
Overall Width -Upper Structure
9.81ft in
Shoe Width
2.63ft in
Ground Clearance (Minimum)
1.65ft in
Overall Height (To Top Of Boom)
12.32ft in
Overall Height (To Top Of Cab)
10.6ft in
Overall Length
36.26ft in
Undercarriage
Number Of Bottom Rollers Per Side
2 x 8
Number Of Top Rollers Per Side
2 x 2
Link Pitch
8.5in
Shoe Width (Standard)
23.63in
Specifications
Electrical System
Alternator
28/80 (V/A)
Voltage
24 VV
Batteries
2
Battery
200 (Ah)
Swing System
Max - Slew Speed
10.2rpm
Max - Slew Torque
878lb ft
Engine
Max Power
1700rpm
Number Of Cylinders
6
Rated Engine Speed
1275rpm
Engine Model
Volvo D13J
Net Power
307.1hp
Gross Power
308.5hp
Max Torque
1248lb ft
Displacement
781.2cu in
Bore
5.2in
Stroke
6.3in
Capacities
Travel Reduction
3.6gal
Slew Reduction
1.6gal
Fuel Tank
163.8gal
Hydraulic Tank
59.5gal
Diesel Exhaust Fluid (Def) Tank
16.6gal
Hydraulic System
132.1gal
Engine Oil
11.1gal
Engine Coolant
15.9gal
Performance
Travel Speed Low
2.2mph
Gradeability
35%
Travel Speed - High
3.3mph
Drawbar Pull Force
62159.7lb
Hydraulic System
Slew Circuit
3700psi
Main Pump - Maximum Flow
158.6gal/min
Pilot Pump - Maximum Flow
8.7gal/min
Implement
5120psi
Travel Circuit
5120psi
Pilot Circuit
566psi
