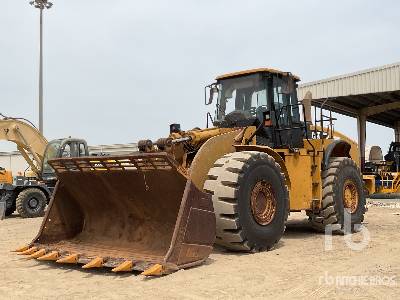

Caterpillar 980H Wheel Loader
Dimensions
Bucket
Dump Clearance At Max Raise
10.83ft in
Breakout Force
61425lb
Bucket Width
11.59ft in
Bucket Capacity - Heaped
5.5yd3
Bucket Capacity - Struck
4.78yd3
Dimensions
Ground Clearance
1.45ft in
Length With Bucket On Ground
31.08ft in
Width Over Tires
10.58ft in
Height To Top Of Cab
12.35ft in
Wheelbase
12.17ft in
Hinge Pin - Max Height
14.78ft in
Reach At Max Lift And Dump
5.08ft in
Height - Top Of Exhaust Pipe
146.28in
Centerline Of Rear Axle To Hitch
72.84in
Centerline Rear Axle To Edge Of Counterweight
8.18ft in
B-Pin Height - Standard
14.78ft in
Height - Top Of Hood
106.92in
Height - Top Of Rops
12.35ft in
Wheel Base
12.14ft in
Specifications
Engine
Number Of Cylinders
6
Engine Make
2236
Engine Model
C15 ACERT
Net Power
318hp
Gross Power
355hp
Power Measured @
1800rpm
Max Torque
1191lb ft
Displacement
928cu in
Bore
5.4in
Stroke
6.8in
Net Power - Iso 9249
349hp
Net Power - Sae J1349
349hp
Net Power - 80/1269/Eec
353hp
Gross Power - Sae J1995
393hp
Engine Model
Cat? C15 ACERT?
Peak Torque - 1,200 Rpm - Net
1244lb ft
Operational
Operating Weight
66489.3lb
Fuel Capacity
127gal
Hydraulic System Fluid Capacity
66gal
Engine Oil Fluid Capacity
10gal
Cooling System Fluid Capacity
22gal
Transmission Fluid Capacity
16gal
Front Axle/Diff Fluid Capacity
23gal
Rear Axle/Diff Fluid Capacity
23gal
Static Tipping Weight
50201lb
Turning Radius
26.1ft in
Operating Voltage
24V
Alternator Supplied Amperage
80amps
Rear Axle Oscillation
26degrees
Tire Size
29.5-25
Transmission
Transmission Type
Powershift
Number Of Forward Gears
4
Number Of Reverse Gears
4
Max Speed - Forward
22.6mph
Max Speed - Reverse
25.8mph
Forward - 1
4.1mph
Forward - 2
7.3mph
Forward - 3
12.9mph
Forward - 4
22.6mph
Reverse - 1
4.7mph
Reverse - 2
8.4mph
Reverse - 3
14.7mph
Reverse - 4
25.8mph
Weights
Operating Weight
67294lb
Tires
Tires
Choose from a variety of tires to match your application.
Buckets
Maximum Bucket Capacity
8yd3
Bucket Capacities
3.8-6.1 m? 5.0-8.0 yd?
Bucket Width
11.6ft in
Capacity - Reference Bucket
5.5yd3
Type - Reference Bucket
GP with teeth
Breakout Force - Reference Bucket
61372.9lb
Hydraulic System
Relief Valve Setting
3000psi
Pump Flow Capacity
123gal/min
Raise Time
6sec
Dump Time
2.1sec
Lower Time
3.4sec
Axles
Front
Fixed front
Rear
Oscillating +/- 13?
Hydraulic System
Pump Type
Gear
Axles
Maximum Single-Wheel Rise And Fall
21.7in
Hydraulic System
Hydraulic Cycle Time - Total
11.5 s
Hydraulic Cycle Time - Lower, Empty, Float Down
3.4 s
Hydraulic Cycle Time - Raise
6 s
Pilot System - Pump Output
122.58 gal/min
Bucket/Work Tool System - Relief Valve Setting
3000 psi
Hydraulic Cycle Time - Dump
2.1 s
Bucket/Work Tool System - Pump Output
123 gal/min
Brakes
Brakes
Meets required standards.
Operating Specifications
Static Tipping Load - Full Turn
42989lb
Dump Clearance
10843.2ft in
Breakout Force
44775lb
Service Refill Capacities
Cooling System
22gal
Crankcase
17gal
Hydraulic Tank
33gal
Hydraulic System - Including Tank
66gal
Fuel Tank - Standard
127gal
Transmission
16gal
Differential - Final Drives - Front
23gal
Differential - Final Drives - Rear
23gal
Cab
Rops/Fops
Meets SAE and ISO standards.
